Advanced Oil Management
Precision Industrial Frying Systems
High-capacity Continuous & Batch frying solutions. Integrated with dynamic oil filtration to extend oil life, lower acid value, and ensure golden, uniform results.
Gas / Electric / Diesel
Dynamic Oil Filter
Auto-Lifting Hygiene
Which System Fits Your Line?
The choice depends on your required throughput, frying time, and product fragility.
VS
Continuous

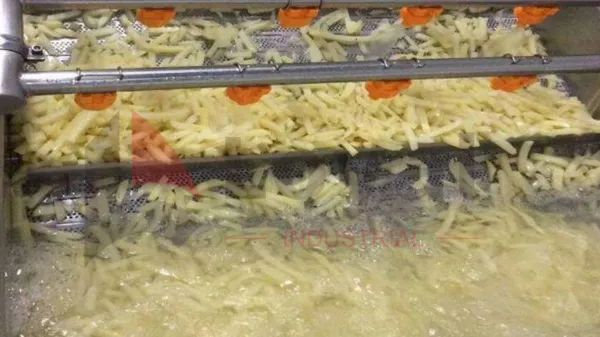

Continuous Belt Fryer
For Mass ProductionA fully automated “Input-Output” tunnel system. Products travel on a conveyor belt through the hot oil. Ideal for large-scale lines requiring identical frying times and uniform coloring.
- Throughput: 200kg/h – 2000kg/h
- Frying Time: Adjustable (15s – 15min)
- Benefit: Low labor, High Consistency
Automatic Batch

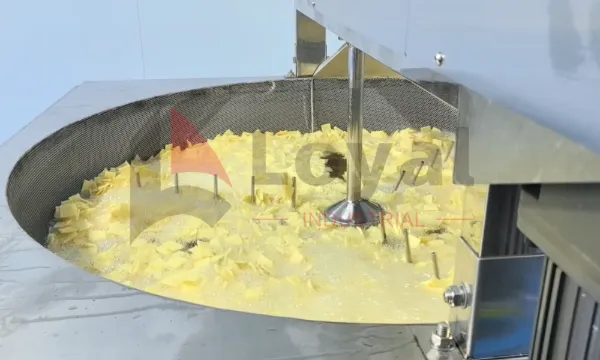

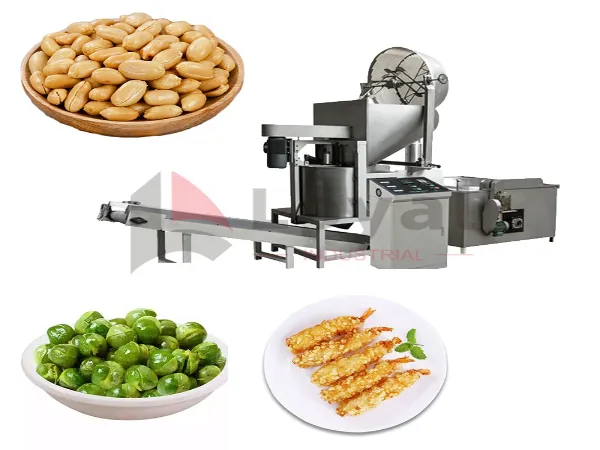

Batch / Basket Fryer
For Flexibility & TextureFries one specific weight (batch) at a time with automatic stirring and tilting discharge. Ideal for products that need longer dwell times or agitation to prevent sticking.
- Throughput: 50kg/h – 500kg/h
- Frying Time: Flexible (Minutes to Hours)
- Benefit: Better Texture for Hard Foods
Save Oil, Save Costs
In industrial frying, oil quality determines your profit margin. Our technology focuses on extending oil life, preventing carbonization, and ensuring every joule of energy goes into the product.

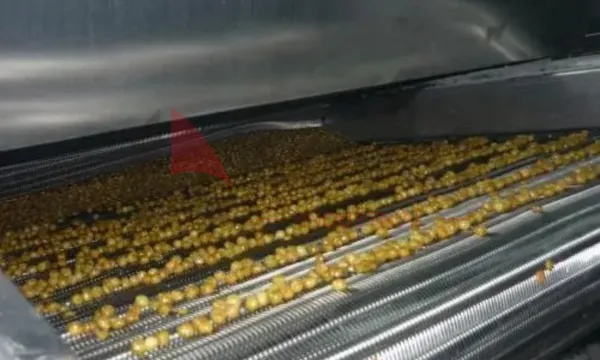

Dynamic Filtration System
Stop throwing away oil. Our continuous scraping system removes residue instantly before it carbonizes. Combined with external fine filtration, this keeps the Acid Value (FFA) low and the oil crystal clear for weeks.
95% Thermal Efficiency
Whether using Gas or Electric, our immersion heating tubes are designed for maximum surface area contact. This ensures rapid heat transfer directly to the oil with minimal exhaust waste, lowering your energy bill.
Precision PLC Control
Fluctuating temperature causes greasy food. Our smart PID controller maintains oil temperature within ±1°C. This precision prevents over-frying and significantly reduces oil absorption by the product.
30%
Oil Saved Annually

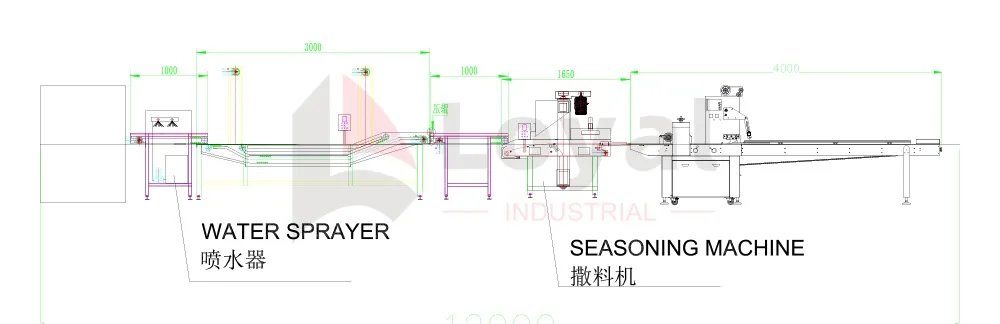

Complete Line Integration
A fryer is only as good as the equipment around it. We engineer the complete post-frying line to ensure your product remains crispy and non-greasy.
1. Feeding
Vibrating feeders or conveyors ensure products enter the oil curtain evenly, preventing clumps.
↓
2. Frying
Products travel through the temperature-controlled oil zone. Moisture flashes off, texture is set.
↓
3. De-Oiling
High-Pressure Air Knives or Vibration remove excess surface oil immediately, ensuring a dry, crisp finish.
↓
4. Flavoring
Products enter a rotating drum where seasoning powder is applied uniformly while the product is still warm.
Versatility in Every Batch
From delicate snacks to hearty nuts, our fryers ensure consistent texture and golden color. Choose the right machine for your product.
Continuous Belt
Potato Chips
Requires precise temp control to prevent burning sugar content.
Uniform Golden Color
Batch or Continuous
Nuts & Beans
Needs longer dwell time for crunchy texture inside out.
Perfect Crunchiness
Batch Fryer
Chin Chin / Dough
Traditional snacks benefit from the agitation of batch frying.
Even Expansion
Batch or Belt
Meat & Seafood
Fried Chicken, Nuggets, or Fish Skin. Requires high heat shock.
Crispy Coating
Model Specifications
Select the right capacity for your production line. We offer both continuous tunnel fryers for mass production and batch fryers for specialized, small-batch quality.
Continuous Belt Fryers (LY-CF Series) Gas / Diesel / Electric
| Model | Belt Width | Effective Length | Output Capacity | Oil Volume |
|---|---|---|---|---|
| LY-CF-600 | 600 mm | 4000 mm | 150 – 300 kg/h | 400 L |
| LY-CF-800 | 800 mm | 6000 mm | 300 – 500 kg/h | 800 L |
| LY-CF-1000 | 1000 mm | 8000 mm | 500 – 800 kg/h | 1200 L |
| LY-CF-1200 | 1200 mm | 10000 mm | 800 – 1500 kg/h | 1800 L |
Automatic Batch Fryers (LY-BF Series) Gas / Electric
| Model | Basket Diameter | Loading/Batch | Cycle Time | Hourly Output |
|---|---|---|---|---|
| LY-BF-1000 | 1000 mm | 30 – 40 kg | 5 – 10 min | 150 – 200 kg/h |
| LY-BF-1200 | 1200 mm | 50 – 60 kg | 5 – 10 min | 250 – 300 kg/h |
| LY-BF-1500 | 1500 mm | 80 – 100 kg | 5 – 10 min | 400 – 500 kg/h |
The “Kidney” of Your Fryer
Oil is your most expensive consumable. Our integrated filtration logic is designed to remove carbonized residue instantly, lowering Acid Value (FFA) and extending oil life significantly.
Dual-Stage Filtration Logic
Effective oil management requires a continuous loop.
Step 1 (Internal): A scraping belt continuously removes large sediment from the tank bottom before it burns.
Step 2 (External): Oil is pumped through an external filtering unit to polish away fine suspended particles before being reheated and returned to the fryer.
2X
Oil Life Extended
<0.5
Target Acid Value
Hygienic Design
No Dead Corners.
No Dead Corners.
Easy to Clean.

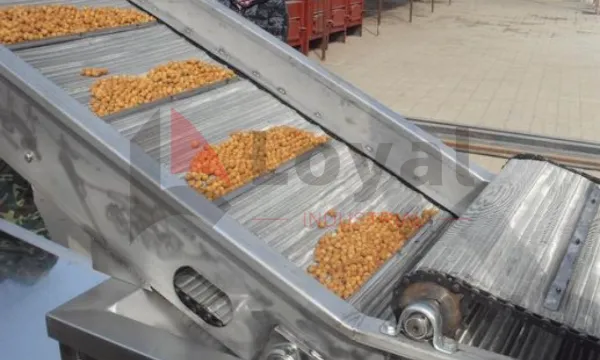

Cleaning a continuous fryer used to be a challenge. Not anymore. Our Automatic Lifting System raises the entire hood and conveyor assembly, giving your crew unobstructed access to the tank bottom.
4-Point Synchronized Lifting
Heavy-duty screw jacks lift the hood evenly. Mechanical safety locks ensure it stays in the “Open” position during maintenance.
Full SUS304 Construction
Every contact part, including the mesh belt and tank, is made from food-grade Stainless Steel 304. Corrosion-resistant and easy to sanitize.
Cool-Touch Insulation
A thick layer of aluminum silicate wool insulation between the inner tank and outer shell keeps the heat inside and the exterior cool to the touch.
Lifts 800mm High
Why Partner with Loyal?
We don’t just sell machines; we provide guaranteed production capacity. Here is why industrial leaders trust us with their frying lines.
Tailored Layouts
Your factory floor is unique. We customize the fryer length, width, and outlet position to fit your specific space constraints perfectly.
Global Installation
Our engineers fly to your site for installation, commissioning, and staff training. We don’t leave until your line is running smoothly.
Critical Spares
Downtime is costly. We keep essential parts like burner nozzles, motors, and belt segments in stock for immediate dispatch.
2-Year Warranty
Standard industry warranty is 1 year. We are so confident in our robust SUS304 construction that we offer a 2-year warranty on core components.
Proven in Production
From instant noodles to high-capacity snack lines, hear from our industrial partners.
“
Noodle Production Line
The instant noodle production line works excellently, and the company’s technical support is outstanding. Very satisfied with the quality and overall performance.
“
Continuous Fryer
ممتاز، الجهاز يعمل بشكل قوي والمواد الغذائية ذات جودة عالية. شكرا لكم. من أول يوم والجهاز ما قصر. أوصي الجميع.
Common Questions
Answers about heating sources, oil management, and machine capabilities.
Which is cheaper: Electric or Gas heating?
For large-scale industrial frying (over 300kg/h), Gas (Natural Gas/LPG) or Diesel is typically much cheaper to run than electricity in most regions. However, Electric heating offers cleaner operation and 100% thermal efficiency, making it ideal for smaller capacities or regions with low electricity costs.
How can I extend the oil life?
Oil degradation is caused by high heat, crumbs (carbonization), and oxidation. Our machines extend oil life via: 1) Precision Temp Control (±1°C) to prevent overheating. 2) Continuous Scraping to remove crumbs immediately. 3) External Filtration to polish the oil constantly.
Can I fry different products in one machine?
Yes. You can easily adjust the belt speed (frying time) and temperature via the PLC touchscreen to suit different products (e.g., switching from Peanuts to Green Peas). However, if switching between products with very different flavors (e.g., Seafood to Nuts), we recommend a thorough boil-out cleaning first.
What utilities do I need for installation?
You will need: 1) Power Supply (3-Phase, voltage customizable). 2) Fuel Source (Gas line or Diesel tank if non-electric). 3) Exhaust Ducting for smoke removal. 4) Compressed Air (if pneumatic valves are used).
Need a Cost Analysis?
Tell us your local energy costs and target capacity. We can calculate your estimated Running Costs (OPEX) per ton of product.
Get ROI Calculation
