Food Production Line Maintenance: A Complete Engineering Guide

The twin-screw extruder bearing experienced a failure at 2:47 a.m. on Tuesday in Jakarta. The entire puff snack line experienced a complete shutdown by 3:15 a.m. The plant processed 12,000 kg of scheduled production loss at 6:00 a.m. which resulted in a missed container ship departure and a $47,000 setback that required three weeks for recovery.

The maintenance manager later discovered the warning signs had been there for weeks. The elevated vibration readings showed abnormal engine performance. The gearbox oil temperature showed an upward trend while the system components operated normally. The system maintained operational performance despite a motor current draw that no one reported because the equipment appeared to work properly.

Food manufacturing facilities replicate this scenario around the world on a daily basis. The situation remains controllable through preventive measures.

You already know that unplanned downtime is expensive. A maintenance program that uses strategic engineering methods will improve equipment reliability while creating a business advantage. This guide provides a step-by-step program development process through real-world data from more than 100 production line installations which cover a span of 10 years.

The next 10 minutes will teach you the following material.

The actual expenses that production line shutdowns create for your facility can be calculated using our cost structure model.

Our research shows that preventive and predictive maintenance and autonomous maintenance methods succeed in decreasing equipment failures by 74 percent.

The equipment maintenance requirements for extruders microwave dryers conveyors and mixers need to be followed through their specific maintenance procedures.

Food safety standards like HACCP and FSMA can be fulfilled through maintenance programs which operate as integrated systems.

You can use practical checklists which you can start using right away.

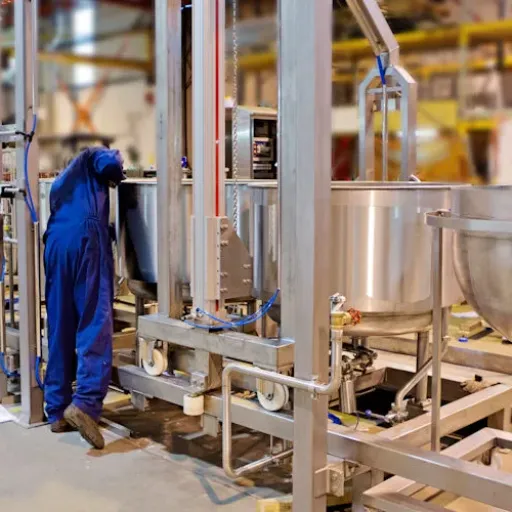

Why Food Production Line Maintenance Is Critical to Your Operation

The True Cost of Equipment Downtime in Food Manufacturing

The majority of facility managers fail to recognize actual downtime expenses because they only measure production losses through missed work hours which results in an expense estimation error that ranges between 40 and 60 percent. The actual situation contains multiple layers of intricacy.

When a critical line stops, you face:

Direct production loss: Missed units × profit margin per unit

Labor costs: Idle operators and maintenance staff still on the clock

Expedited shipping: Air freight to meet customer commitments

Quality risks: Rushed startups often produce out-of-spec product

Customer penalties: Contractual fees for missed delivery windows

Overtime costs: Catching up on lost production

The mid-capacity pasta line which operates at 2,000 kg/hour with 15% margins incurs an eight-hour shutdown cost which ranges between 28,000 and 45,000. High-capacity snack lines running 5 tons/hour can see $80,000+ per incident.

Chen Wei the operations director at a Shanghai-based instant noodle facility discovered that his three lines had “minor” weekly stoppages which cost him 340,000 every year. The discovery resulted in a justifiable annual cost of 340,000. The discovery led to the purchase of a predictive maintenance system which cost 65,000 and generated savings that recovered its expenses within four months.

Regulatory Compliance: HACCP, FSMA, and Food Safety Requirements

You need to maintain food production lines because regulatory requirements make it mandatory. The system requires you to implement preventive measures which must be executed as scheduled.

The FDA’s Food Safety Modernization Act (FSMA) Preventive Controls Rule requires you to document equipment maintenance activities which must be included in your food safety plan. The requirements state that

Every Critical Control Point (CCP) requires a maintenance schedule which must be documented.

The maintenance records need to remain accessible for inspection during three years or more.

The facility needs to complete cleaning validation after maintenance work before operations can resume.

All food-contact maintenance must use approved materials and lubricants

The certification bodies SQF, BRC, FSSC 22000, and IFS Food require maintenance audits as part of their certification process. The discovery of a missing grease log or an unrecorded seal replacement will result in a major non-conformance.

The maintenance activities, which focus on food safety, require special operational procedures.

Food-grade lubricants (NSF H1 certified) are mandatory for any potential incidental contact

Tool control procedures prevent foreign material contamination

Post-maintenance sanitation requires sign-off from both maintenance and quality teams

Maintenance personnel hygiene protocols match production staff requirements

Equipment Longevity and Total Cost of Ownership

A twin-screw extruder properly maintained will operate 15-20 years. The same extruder with reactive maintenance typically requires major overhaul or replacement at year 8-10.

The difference is not just capital expenditure. It is:

• Energy efficiency: Worn screws and barrels increase motor load by 15-25%
• Product consistency: Degraded components create variability that affects your brand
• Spare parts availability: Avoiding emergency air freight for critical components
• Resale value: Well-documented maintenance histories increase equipment value by 20-30%

When evaluating equipment investments, sophisticated buyers now calculate Total Cost of Ownership (TCO) over 10-15 years. Maintenance strategy is the single largest variable in that equation.

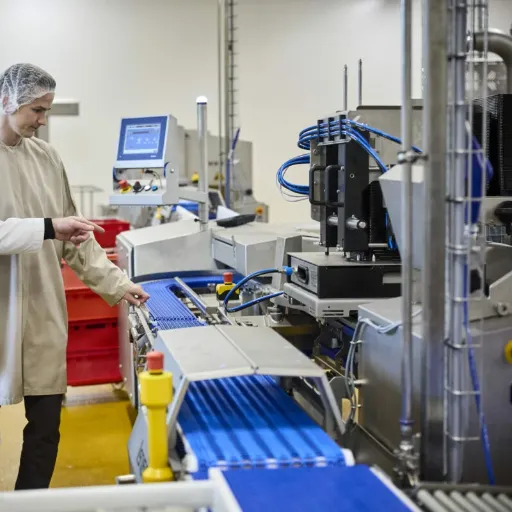

Types of Maintenance Strategies for Food Production

Not all maintenance approaches deliver equal results. Understanding the hierarchy helps you allocate resources strategically.

Reactive Maintenance: When Break-Fix Approaches Fail

The method of fixing equipment after it breaks down costs food manufacturers their highest expenses. Yet 35% of facilities still operate this way for non-critical equipment.

The mathematics are brutal. A single unrecognized bearing failure leads to secondary damage costs between 15,000 and 50,000 dollars which affects screws and gearboxes and drive systems. That does not include production loss.

Reactive maintenance may be defensible for:

Non-critical auxiliary equipment with quick replacement options

Components where failure modes are benign (no cascade damage)

Equipment at end-of-life scheduled for replacement within 12 months

For primary production equipment, reactive maintenance is a luxury that you should not use.

Preventive Maintenance (PM): Scheduled Care for Peak Performance

The maintenance program schedules its tasks through two methods which require maintenance to be performed after specific time periods or after specific machine running durations until equipment failures take place. The system serves as the main base which enables dependable food manufacturing.

The successful implementation of PM programs needs:

Operators perform daily checks which include pre-shift inspections and lubrication verification and cleaning validation tasks

The maintenance program establishes weekly tasks which involve checking belt tension and replacing filters and performing calibration assessments

The maintenance program requires monthly deep service which includes bearing inspection and wear measurement and control calibration

The maintenance program performs quarterly overhauls which include major component inspection and oil analysis and thermocouple calibration activities

Predictive Maintenance (PdM): Data-Driven Intervention

Predictive maintenance uses condition monitoring to detect degradation before functional failure. It represents the evolution from “maintain on schedule” to “maintain on condition.”

Technologies proven effective in food processing environments:

Technology	Application	Warning Lead Time
Vibration Analysis	Rotating equipment, bearings, gearboxes	2-8 weeks
Thermal Imaging	Electrical connections, motor bearings	1-4 weeks
Oil Analysis	Gearboxes, hydraulics	1-3 months
Motor Current Analysis	Drive motors, pumps	2-6 weeks
Ultrasound	Leak detection, bearing condition	1-8 weeks

For twin-screw extruders specifically, vibration monitoring of thrust bearings provides 4-6 weeks warning of impending failure. This allows planned replacement during scheduled sanitation windows rather than emergency shutdowns.

Manufacturers implementing predictive maintenance report 25-40% reduction in unplanned downtime and 8-12% energy savings from operating equipment at optimal condition.

Want to see how predictive maintenance integrates with extrusion systems? [Explore our twin-screw extruder monitoring capabilities →]

Total Productive Maintenance (TPM): Operator-Led Excellence

The implementation of TPM mandates that equipment operators handle fundamental maintenance tasks which turn them into primary defense personnel. The concept establishes that operators possess superior knowledge about their equipment which enables them to identify potential failures through observation of equipment behavior.

Operators perform their autonomous maintenance duties through:

Daily cleaning and inspection

Basic lubrication (with verified food-grade lubricants)

Bolt tightness checks

Abnormal noise, vibration, or temperature reporting

Early wear indicator monitoring

TPM requires organizations to spend considerable training resources which lead to outstanding business benefits. Facilities with advanced TPM programs experience 30-50% decreases in maintenance expenses and 20-40% increases in Overall Equipment Effectiveness (OEE) measurement.

The key is clear standard operating procedures (SOPs) and management support that empowers operators to stop production when they detect abnormalities—without penalty.

Essential Food Production Line Maintenance Schedule

Effective maintenance requires disciplined execution across multiple time horizons. Here is the framework used by high-performing facilities.

Daily Maintenance Checklist (Operator-Led)

Pre-Shift Inspection (15 minutes):

•  Verify all safety guards and interlocks are functional
•  Check gearbox oil levels and color (milky indicates water contamination)
•  Confirm cooling water flow and temperature
•  Inspect conveyor belts for tracking, tension, and damage
•  Verify compressed air pressure and check for audible leaks
•  Test emergency stop buttons
•  Review previous shift log for abnormalities

Post-Production Tasks:

•  Complete CIP (Clean-in-Place) cycle per SSOP
•  Remove and clean die plates while warm (for extruders)
•  Document any anomalies in shift log
•  Secure equipment for sanitation team handoff

Critical rule: Never leave abnormal readings undocumented. That elevated bearing temperature noted on Tuesday becomes the catastrophic failure on Thursday if not investigated.

Weekly Maintenance Tasks

Mechanical Systems:

• Check and adjust belt/chain tension
• Inspect sprockets and pulleys for wear
• Verify lubrication at all grease points (use only NSF H1 food-grade lubricants)
• Check hydraulic/pneumatic systems for leaks
• Clean electrical cabinet filters

Instrumentation:

• Calibrate critical sensors against known standards
• Verify temperature controller accuracy (±2°C tolerance)
• Check pressure transducer readings
• Test metal detector/X-ray sensitivity with certified test pieces

Documentation:

• Review weekly downtime logs for patterns
• Update PM completion records
• Order consumables based on usage rates

Monthly Deep Service

Bearing and Drive Systems:

• Measure bearing temperatures during operation
• Check for abnormal vibration or noise
• Verify coupling alignment
• Inspect drive belts for wear and replace if cracked or glazed

Wear Component Assessment:

• Measure screw-to-barrel clearance (for extruders)
• Check mixer paddle/blade condition
• Inspect conveyor belt edges and splices
• Examine seals and gaskets for degradation

Control System Verification:

• Calibrate all temperature controllers with certified probes
• Verify PLC program functionality
• Test all safety interlocks and emergency stops
• Check and tighten electrical terminals

Quarterly and Annual Overhauls

Quarterly (Every 2,000-3,000 operating hours):

• Complete vibration analysis on all rotating equipment
• Perform oil analysis on gearboxes and hydraulic systems
• Conduct thermographic survey of electrical panels
• Measure and document screw/barrel wear trends
• Verify all calibration certificates are current

Annual (Every 8,000-10,000 operating hours):

• Major gearbox oil change and internal inspection
• Complete screw and barrel dimensional survey
• Motor insulation resistance testing
• Full control system recalibration
• Fire suppression system inspection
• Update spare parts inventory based on wear data

Equipment-Specific Maintenance Guidelines

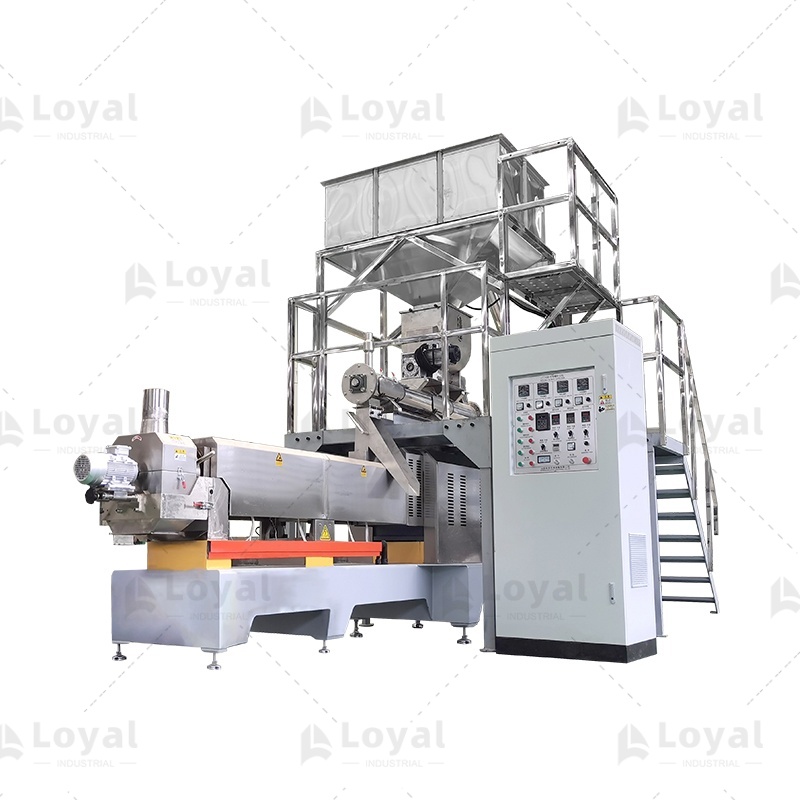

Twin-Screw Extruder Maintenance

Twin-screw extruders are the workhorses of modern snack, pasta, and pet food production. Their maintenance requirements are specialized and critical.

Daily:

• Check gearbox oil level and temperature (normal: 40-60°C)
• Verify barrel temperature zones hold setpoint (±3°C)
• Inspect die head bolts for tightness (vibration causes loosening)
• Confirm feed throat cooling water flow
• Clean die plate after production (use brass brushes, never steel)

Weekly:

• Measure screw flight wear at three points along barrel
• Check gearbox oil for water contamination (milky appearance)
• Inspect belt tension and pulley alignment
• Clean electrical cabinet intake filters

Monthly:

• Measure screw-to-barrel clearance with feeler gauges
• Lubricate main bearings with high-temp food-grade grease
• Inspect safety interlocks and mechanical couplings
• Test heater band amperage vs. rated capacity

Critical wear limits:

Component	New Clearance	Replace At	Measurement Method
Screw OD	OEM spec	+0.5mm max	Feeler gauge at 3 points
Barrel ID	OEM spec	+0.8mm max	Bore gauge
Thrust Bearing	OEM preload	Excessive play	Dial indicator

Replacement cycles vary by formulation abrasiveness:

• High-abrasion (bone meal, mineral premixes): 6-9 months
• Moderate (whole grains, corn): 12-15 months
• Low-abrasion (refined starches): 18-24 months

When Omar Hassan upgraded his Cairo pet food facility with bimetallic barrels and hard-faced screws, screw life extended from 8 months to 22 months despite processing high-ash formulations. The $12,000 upgrade paid for itself in one replacement cycle.

Need extruder maintenance support? [Contact our technical team for screw/barrel assessment →]

Industrial Microwave Dryer Maintenance

The microwave drying systems need maintenance work which requires special skills to ensure RF safety and maintain proper magnetron operation and maintain the conveyor system.

Daily:

The team needs to confirm that the magnetron cooling system operates at required water flow rates and maintains proper temperature levels.

The team needs to examine waveguide seals to determine whether food particles have built up inside.

The team needs to evaluate the conveyor belt system to check its tracking ability and tensioning system.

The team needs to evaluate all safety interlocks which include door switches and emergency stop buttons.

The team needs to remove all product waste from both the conveyor system and chamber area.

Weekly:

The team needs to measure how much current the magnetron draws because rising current levels show equipment deterioration.

The team needs to examine the waveguide for any signs of arcing or burn damage.

The team needs to assess the condition of the belt splice.

The team needs to check both exhaust airflow and the status of the filter system.

Monthly:

The team needs to calibrate temperature sensors using approved standard references.

The team needs to measure microwave leakage at door seals which should not exceed 5 mW per cm².

The team needs to assess the condition of belt support rollers to find any signs of material degradation.

The team needs to clean all cooling system filters together with heat exchangers.

Annual:

The team needs to replace the magnetron which lasts between 8000 to 12000 operational hours.

The team needs to conduct an internal waveguide inspection.

The team needs to perform a complete RF leakage examination using a calibrated measuring device.

The team needs to install control system software updates while performing system backup tasks.

Critical safety note: Never operate microwave systems with bypassed interlocks or open doors. RF exposure poses immediate health risks.

Conveyor and Material Handling Systems

Conveyors seem simple but cause 25-30% of production line stoppages when poorly maintained.

Daily:

• Check belt tracking (should run centered on rollers)
• Verify proper tension (deflection: 2-3% of span length)
• Inspect belt surface for cuts, gouges, or fraying
• Clean product residue from belt and rollers
• Check for abnormal noise from bearings

Weekly:

• Lubricate chains and sprockets with food-grade lubricant
• Inspect roller bearings for seizure or excessive play
• Check frame integrity and levelness
• Verify motor mounting bolt tightness

Monthly:

• Measure chain stretch against OEM limits (typically 1.5-2% elongation = replacement)
• Inspect sprocket tooth wear
• Check and adjust belt scrapers and cleaners
• Test emergency pull-cords and zero-speed switches

Mixing and Blending Equipment

Mixers operate in harsh environments with abrasive materials, moisture, and frequent sanitation cycles.

Daily:

• Inspect shaft seals for leakage
• Check paddle/blade condition and bolt tightness
• Verify mixer discharge valve operation
• Clean product residue from interior and exterior

Weekly:

• Check drive belt/chain condition and tension
• Lubricate bearings per OEM schedule
• Inspect electrical connections in control panel
• Verify mixer timing and sequence programs

Monthly:

• Measure paddle/blade wear (thickness reduction indicates replacement need)
• Check bowl interior for scoring or damage
• Inspect seal faces for wear patterns
• Test overload protection systems

Food Safety and Sanitation Integration

Maintenance and food safety are inseparable in modern food manufacturing. Your maintenance program must satisfy both reliability and regulatory requirements.

Food-Grade Lubricants and Materials

Any lubricant used on or near food-contact surfaces must be:

NSF H1 registered for incidental food contact

ISO 21469 certified for manufacturing hygiene

Stored in clearly labeled containers separate from non-food-grade lubricants

Applied with dedicated tools (not shared with non-food equipment)

Common mistake: Using H2 (non-food contact) lubricants on bearings near product zones. The product contamination occurs when the seal fails, which leads to a recall situation.

You should perform monthly audits of your lubricant storage. The color-coded systems (blue = food-grade, red = non-food) which prevent product mix-ups.

Post-Maintenance Cleaning Validation

The maintenance work required to access equipment and product areas needs to be completed before work can start again.

Technician certification requires the technician to verify complete removal of all tools and parts and debris from the work area.

The cleaning team executes the complete SSOP procedure for their cleaning work.

The pre-operational inspection verifies all areas of the facility meet cleanliness standards which allows production to begin.

The four-step handoff system prevents the standard contamination problem which occurs when two parties assume that cleaning has been finished.

The documentation needs to include work order completion and sanitation log and pre-op checklist with signatures.

Tool Control and Contamination Prevention

Foreign material risks from maintenance tools pose significant danger to operations. The following requirements need to be implemented:

Shadow boards for tool storage with visual confirmation of completeness

Tool logs for tools entering/exiting production areas

Color-coding for high-risk vs. low-risk zone tools

Non-metallic tools where possible (reduces metal detector challenges)

A biscuit manufacturing facility in Malaysia experienced production shutdown for six hours because 10mm wrench went missing. The staff needed to quarantine 50000 units which required X-ray scanning. The toolbox that the staff found the wrench in had not undergone comparison with the shadow board.

Maintenance Documentation for Audit Readiness

Regulatory auditors and certification bodies expect comprehensive records:

Record Type	Retention Period	Key Elements
Preventive Maintenance Records	3+ years	Date, technician, tasks completed, parts used
Calibration Certificates	3+ years	Standard used, before/after readings, traceability
Training Records	Employment + 3 years	Competency verification, refresher dates
Corrective Actions	3+ years	Root cause, corrective action, verification
Equipment Modification	Equipment lifetime	Change control documentation, impact assessment

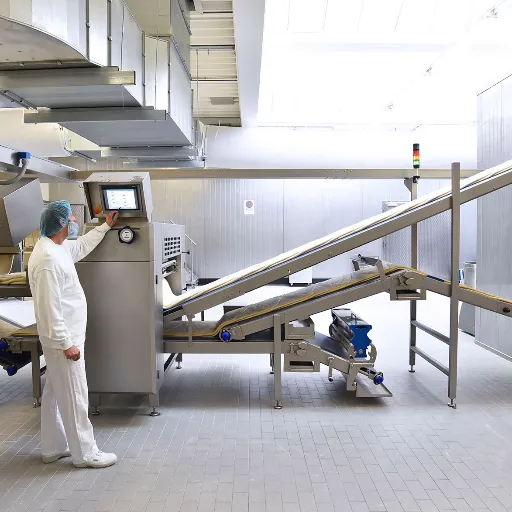

Reducing Production Line Downtime Through Strategic Maintenance

Aligning Maintenance with Production Schedules

The most advanced maintenance program requires operational capability to maintain production processes without interruption. Successful operations depend on effective time management.

Integration tactics:

Sanitation windows: Perform disassembly-required maintenance during scheduled CIP cycles

Product transitions: Execute PM tasks during planned changeovers

Seasonal planning: Schedule major overhauls during low-demand periods

Night/weekend windows: Utilize off-shift hours for non-critical equipment

Advanced approach: Use SMED (Single-Minute Exchange of Dies) principles to convert internal maintenance tasks (equipment stopped) to external tasks (preparation during production).

Critical Spare Parts Inventory Management

Having the right spares on hand reduces Mean Time To Repair (MTTR) by 40-60%.

Tier 1 (Critical – keep in stock):

• Bearings for all rotating equipment
• Seals and gaskets for food-contact surfaces
• Drive belts and chains
• Heater bands and thermocouples
• Motor contactors and overloads

Tier 2 (Important – 2-3 day availability):

• Gearbox components
• Screw/barrel segments
• Control modules
• Conveyor belting

Tier 3 (Long-lead items – monitor, plan ahead):

• Custom-fabricated components
• Imported specialty parts
• Large drive motors
• Complete gearboxes

The cost of carrying inventory is typically 20-25% of part value annually. The cost of not having a critical spare during peak production season is often 10-50x that amount.

Rapid Response Protocols for Emergency Repairs

Even with excellent preventive maintenance, emergencies occur. Preparedness determines impact.

Elements of rapid response:

• 24/7 maintenance coverage during production hours
• Mobile maintenance units positioned near critical equipment
• Pre-planned emergency procedures for common failure modes
• Automatic technician notification when production stops occur
• Digital work order systems providing repair history at point of work

When a microwave dryer magnetron failed at a snack facility during peak season, their rapid response protocol had a replacement unit installed and operational within 90 minutes. Without the protocol, the same repair would have taken 8+ hours.

Training Operators for Autonomous Maintenance

Operator engagement multiplies your maintenance effectiveness without multiplying headcount.

Training curriculum:

• Equipment fundamentals (how it works, what normal looks like)
• Early warning signs (noise, vibration, temperature, product quality drift)
• Basic care tasks (cleaning, lubrication, inspection)
• When to call maintenance (escalation criteria)
• Food safety basics (HACCP, GMP, allergen control)

Competency verification is essential. A technician who cannot demonstrate proper torque wrench use should not perform bolt tightening tasks.

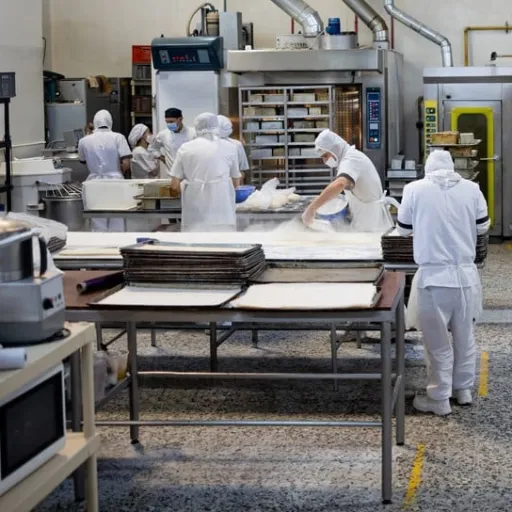

Implementing a CMMS for Food Production Maintenance

Computerized Maintenance Management Systems (CMMS) transform maintenance from paper-based chaos to data-driven discipline.

Key Features for Food Manufacturing CMMS

Essential capabilities:

• Work order management: Generation, assignment, tracking, closure
• PM scheduling: Automatic generation based on time or meter readings
• Parts inventory: Storeroom management with reorder alerts
• Mobile access: Technicians update work orders at the point of work
• Document control: SOP access, drawings, manuals in digital format
• Audit trail: Complete history of all maintenance activities

Food industry-specific requirements:

• Sanitation schedule integration
• Food-grade material tracking
• Allergen control documentation
• Regulatory report generation

Digital Documentation and Compliance Tracking

Digital systems provide capabilities impossible with paper:

• Photo documentation: Visual condition records attached to work orders
• Automatic trending: Equipment performance tracked over time
• Compliance dashboards: Real-time visibility into PM completion rates
• Audit preparation: Instant generation of required documentation

Facilities implementing CMMS report 20-25% reduction in downtime and 15-20% reduction in maintenance costs through better planning and execution.

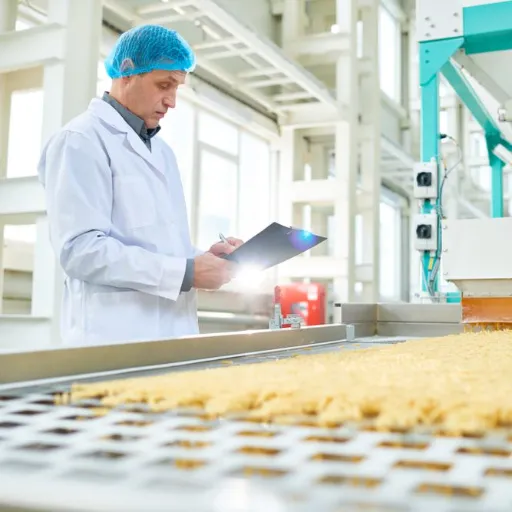

Maintenance Metrics and Continuous Improvement

Trend Analysis and Predictive Insights

Data becomes valuable when analyzed for patterns:

• Failure mode tracking: Which components fail most often? Why?
• Cost trending: Are maintenance costs increasing or decreasing per unit produced?
• Root cause analysis: Address systemic issues, not just symptoms
• Predictive indicators: Which measurements predict failures?

Monthly reliability reviews with maintenance, operations, and quality teams drive continuous improvement.

Conclusion

The process of maintaining food production lines operates as a strategic function which establishes the company’s ability to deliver dependable services and maintain product excellence and follow all applicable regulations.

Facilities that achieve operational excellence approach maintenance through engineering methods instead of mechanical solutions. They use data collection to track equipment performance changes and base their investment choices on their analysis results. The system combines maintenance functions with food safety processes and production scheduling and continuous enhancement efforts.

Key takeaways:

• Unplanned downtime costs 28,000−28,000−80,000+ per incident for typical food production lines
• Preventive maintenance programs reduce failures by 30-50% and extend equipment life 5-7 years
• Predictive maintenance technologies provide weeks of warning before functional failure
• Food safety regulations mandate documented maintenance as a preventive control
• Operator involvement through TPM multiplies maintenance effectiveness
• CMMS implementation reduces downtime 20-25% through better planning

The question is not whether you can afford a comprehensive maintenance program. The question is whether you can afford to continue without one.

Frequently Asked Questions (FAQs)

What are the best practices for food processing equipment maintenance to minimize downtime?

Food processing equipment maintenance best practices require organizations to implement preventive maintenance and predictive maintenance and maintain thorough maintenance documentation and conduct their regular maintenance tasks during scheduled downtime. Organizations that adopt proactive asset management strategies with their maintenance activities experience reduced occurrences of unplanned downtime and less interruption to their production processes. Food manufacturing companies need to ensure their maintenance staff adheres to food safety regulations together with good manufacturing practices (GMP) standards because this approach enables them to maintain product cleanliness while achieving their maintenance goals at reduced expenses and improved production efficiency throughout their food production operations.

How can a preventive maintenance program for food processing machines reduce unplanned downtime?

The preventive maintenance program requires operational scheduling for maintenance activities which include inspections and cleaning and lubrication and parts replacement according to both runtime requirements and manufacturer specifications. The program requires food processing machines to operate according to facility maintenance requirements while using preventive and predictive maintenance technologies and training maintenance teams to detect early signs of equipment failure. Food manufacturers achieve production efficiency by preventing equipment failures which results in both operational continuity and compliance with food safety standards throughout their production process.

What maintenance challenges do food and beverage manufacturers face and how can they be solved?

The food and beverage industry faces maintenance challenges because it must maintain strict hygiene standards while dealing with equipment corrosion that results from washdown processes and its need to operate complex food processing systems and comply with multiple industry standards. Food processors can address their maintenance challenges by implementing sanitary equipment designs which allow them to create operational maintenance use records and by using maintenance services which specialize in plant maintenance and by using asset management systems. The organization can achieve its goals by establishing a maintenance and repairs system which combines safety standards with good manufacturing practices.
